Hot Sync Function 300W 25A LED Dimmer For Strip

  • >=10 Pieces
    $7.00
Color:
Voltage:
12-24v
Model Number:
HX-SZ100-SYNCDIM-14K
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples:
$7.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HOION/Customized
Type:
Remote Control
Max. Load Power:
600W
Voltage:
DC12V-24V
Warranty(Year):
3-YEAR
Lighting solutions service:
Project Installation
Certification:
CE ROHS
warranty:
3 years
Supply Voltage:
DC 12~24V
Output power:
12V: 300W; 24V: 300W
Max. Output Current:
25A*1CH
PWM frequency:
RF
Remote distance:
20M-30M
Memory function:
support
Connecting mode:
common anode
Static power consumption:
<1W
Product Certification certification
CE Certified.
Valid from 2017-04-06 until 2049-12-31
RoHS Certified.
Valid from 2015-11-25 until 2049-12-31
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
G.W.: 210g
Package size: L147*W85*H73 (mm)
Natural Package/Customized Package
Port
shenzhen

Hot Sync Function 300W 25A LED Dimmer For Strip



Product Description

HX-SZ100-SYNCDIM-14K

RF Dimmer

HX-SZ100-SYNCDIM-14K, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt RF remote control, transmission Distance up to 20m,no need line-of-sight. 14 function buttons, intuitive panel allowing intelligent lighting with brilliant simplicity. Particularly, HX-SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max. Further, it can be easily connected by RJ45 to achieve all units work synchronization.

LED Controller.jpg



Product Feature



1. Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free.

2. Adopt RF remote control, transmission Distance up to 20m,no need line-of-sight.

3. High watt output design, up to 300W/CH.

4. Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.

5. HX-SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max.

6. 2-year warranty



Technical Parameters:





Working temperature

-20-60℃

Working voltage

DC12V~24V

External dimension

L127*W41*H32 (mm)

Packing size

L147*W85*H73 (mm)

Net weight

180g

Gross weight

210g

Output gray

256 levels

Max. Output current

25A(1channel)

Max. Output power

300W/12V; 600W/24V

Frequency of RF remote control

433.9MHz

RF remote rang:

20M

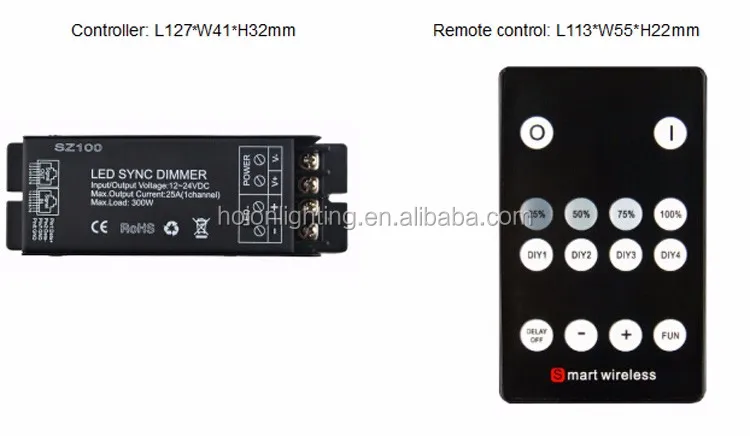

External Dimension

HX-SZ100-SYNCDIM-14K 2.jpg

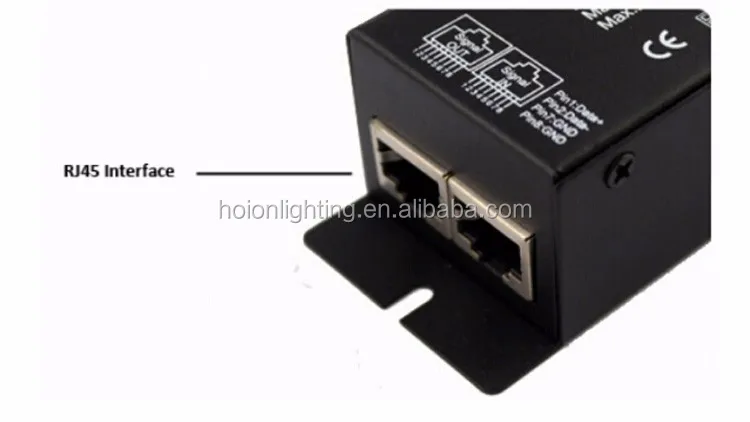

Interface Specifications

 It is designed with Synchronization function. Convenient to use RJ45 connector to connect the multiple

dimmers together, and achieve the synchronization function of thousands meters led strips.



HX-SZ100-DIM 4.jpg

HX-SZ100-SYNCDIM-14K (5).png









Typical Applications:

LED Controller 2.jpg













Product information for placing order:





Product name

Item number

                                               RF Dimmer

                                    HX-SZ100-SYNCDIM-14K
